Kikusui TOS5302 AC Flash Tester / HiPot plus Insulation Resistance Tester 0-5kV(AC) 25-1000V(IR) AC 0-100mA (200mA S/C)

Description

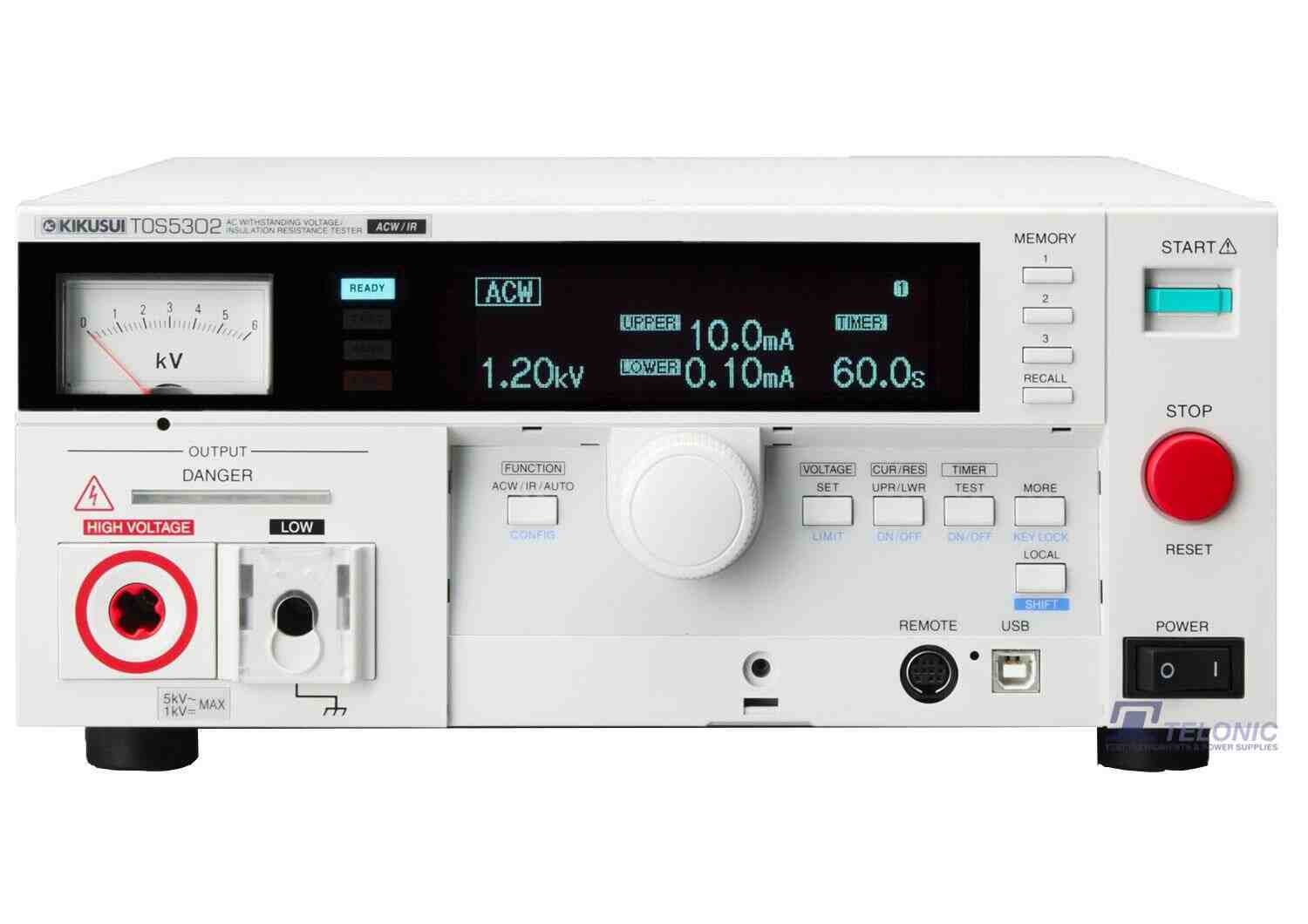

Kikusui TOS5302 Safety Tester

The Kikusui TOS5302 is a AC withstanding voltage and DC insulation resistance tester. It has an AC output of 5 kV/100 mA (200mA S/C 500VA Capacity) and 25V-1000V (7 steps), 500V or greater, up to 5.00G Insulation Resistance test, the TOS5302 can be used in HiPot/Insulation resistance testing of electronic equipment and electronic parts, based on the requirements of IEC, EN, UL, VDE, JIS, and other international safety standards. Also, the test voltage stability is improved with the adoption of a newly developed switching amplifier. Since the output voltage can be kept constant even when the AC line voltage or frequency changes, consistent testing can be performed, even when the power supply environment is in an unstable region. The TOS5300 is also equipped with a number of features. Rise time/Fall time control, Key lock function and Protection cover for key operation, Equipped with USB interface.

Supplied with..

• New Calibration Certificate (Traceable to National Standards)

• Test Leads

• Mains Lead

• Operation Information

Features:

• PWM amplifier system for achieving highly stable output
• AC withstand voltage test at 5 kV / 100 mA (500 VA)
• Insulation resistance test: 25 V to 1000 V (7 steps) Insulation resistance test: Measures up to 5.00 GΩ
• High precision measurement ± 1.5% of reading (Voltmeter 500 V or more, ammeter 1 mA or more)
• Rise time / Fall time control
• Key lock & operation section cover
• USB interface installed
