Micsig AHO14-200 Master Kit, 4 Channels, 200MHz, 12-Bit High Resolution Automotive Oscilloscope

£930.00 (£1,116.00 inc. VAT)

Out of stock

SKU: AHO14-200-Master Categories: , , , , Tags: , , , Brand:

Description

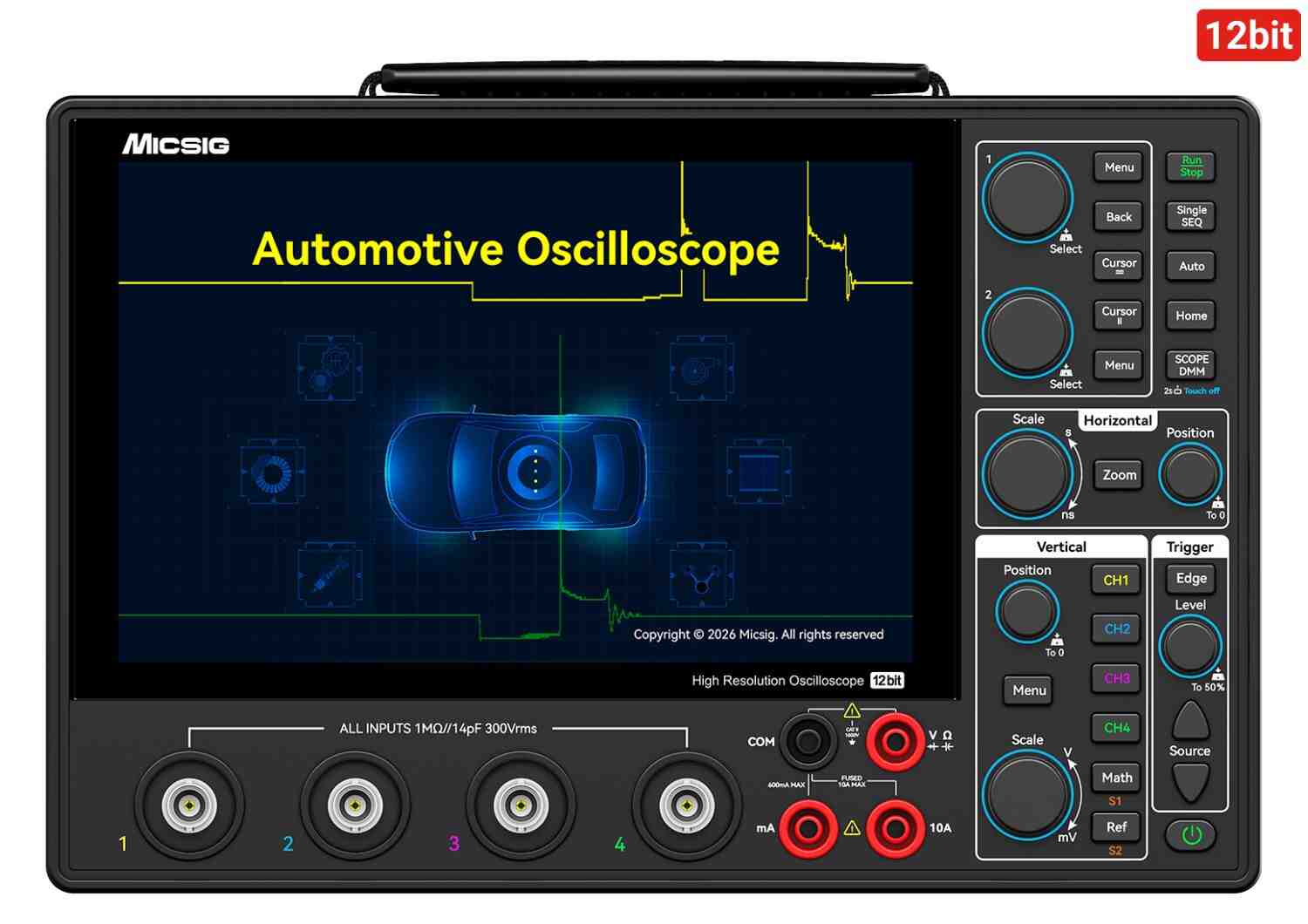

Micsig AHO14-200 Master Kit High Resolution Automotive Oscilloscope

The Micsig AHO1 Series is a professional automotive oscilloscope designed for vehicle diagnostics, featuring a high-resolution display. It includes a 12-bit ADC, a bandwidth of 200 MHz, and four analogue channels. Its real-time sampling rate stands at 1 GSa/s, with a memory depth of 110 Mpts, ensuring accurate performance for detailed electrical analysis.

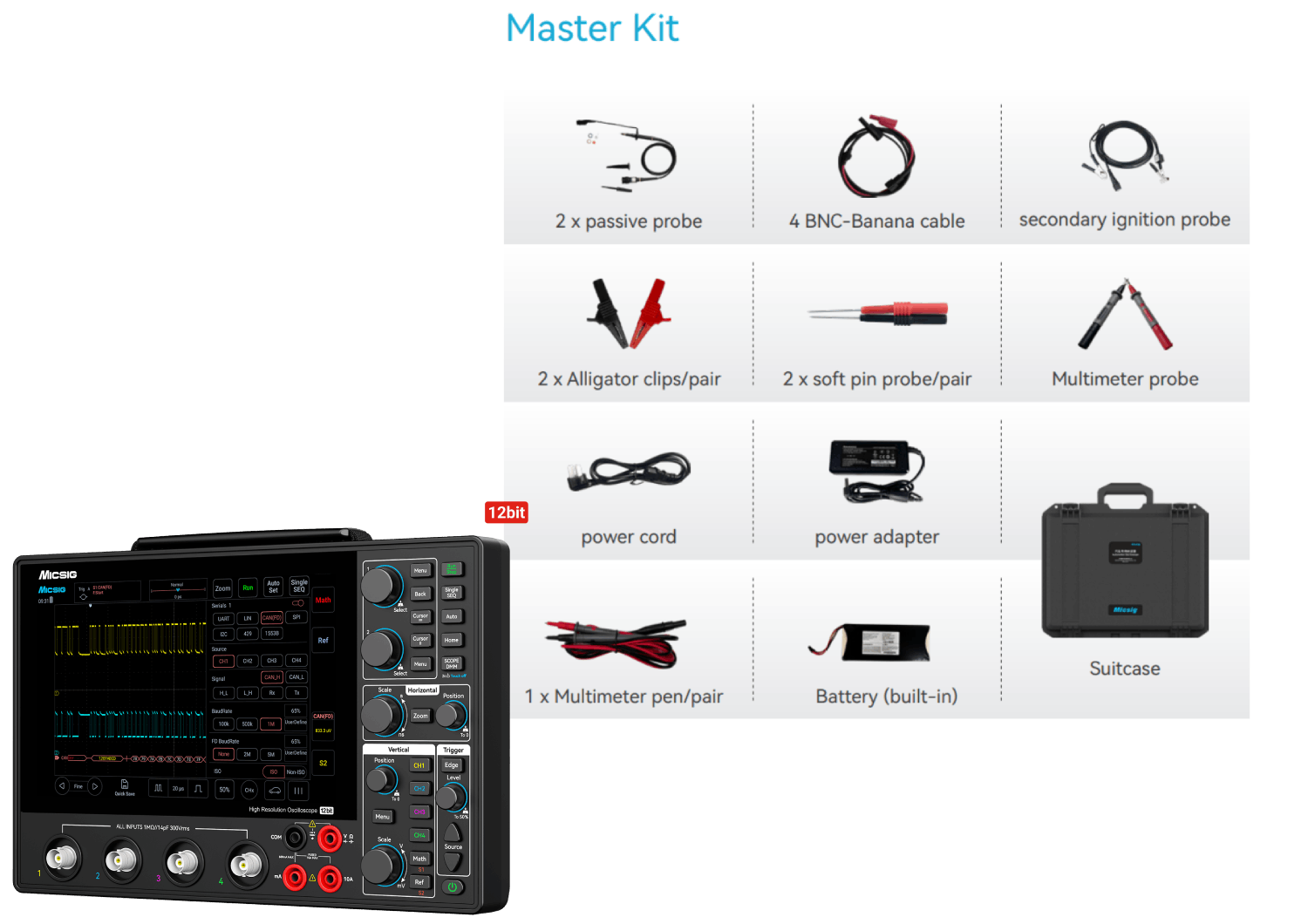

The Master Kit is the ultimate diagnostic solution for lead technicians and specialists who require a comprehensive toolset for complex vehicle electronics. This premium package includes the full range of professional accessories and specialised probes, all housed in a rugged, heavy-duty carrying case for maximum protection and organisation. It is specifically curated to meet the diverse needs of both internal combustion engine (ICE) and New Energy Vehicle (EV) diagnostics.

You are currently viewing the Master Kit for the AHO1-200 | Click Here to see the Standard Kit

Model AHO14-200
Bandwidth 200MHz
Analogue channels 4
Real-time sampling rate 1GSa/s
Rise time ≤1.75ns
Memory depth 110Mpts
Vertical resolution 12bit
Max. waveform capture rate 50,000 wfms/s

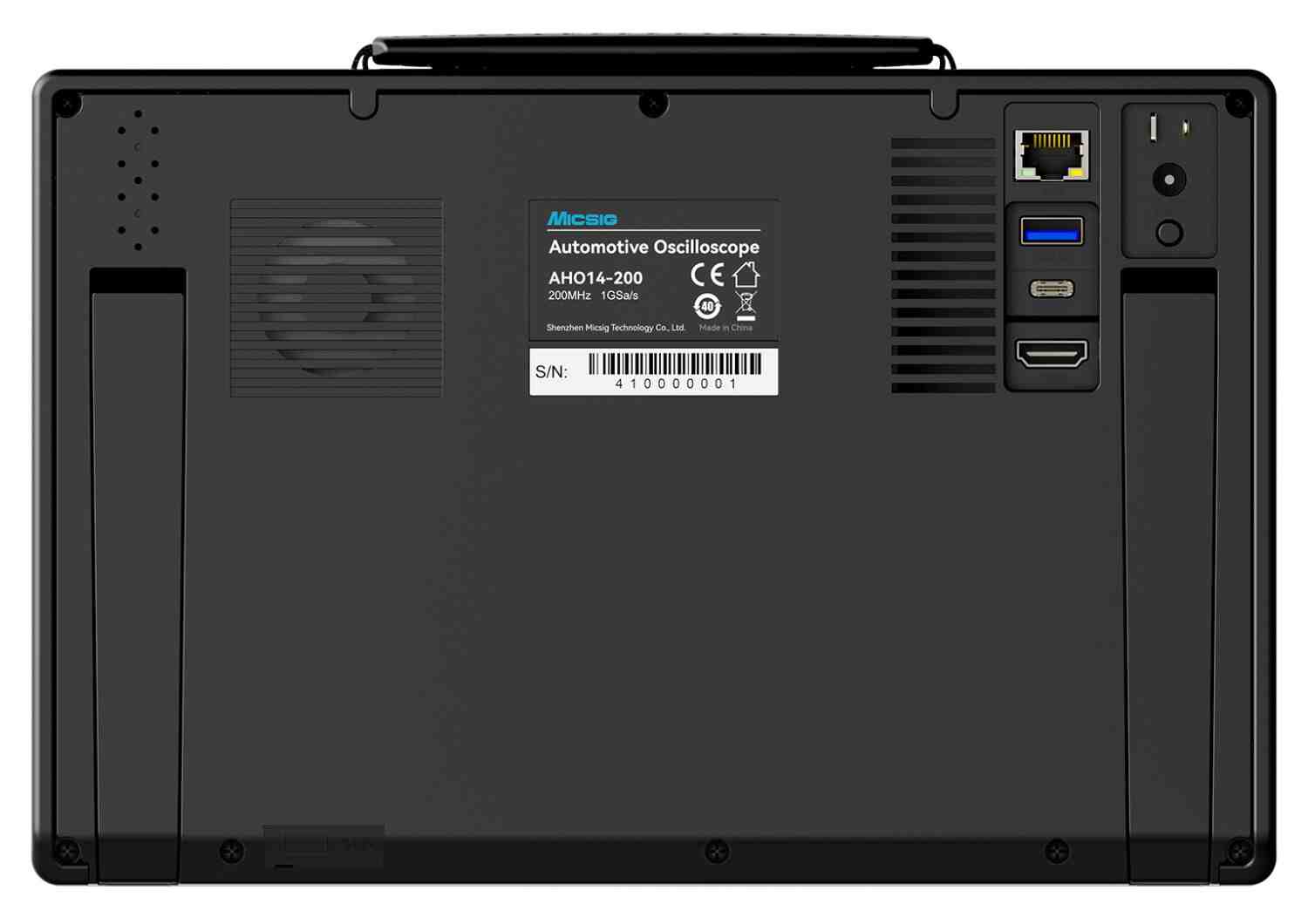

Interfaces USB 3.0 Host, USB Type-C, LAN, HDMI
Supported tests Charging/Start Circuits, Sensors, Actuators, Ignition, Networks (CAN L/H, CAN FD, LIN, FlexRay, K line), Combination Tests
Display 8″ TFT LCD capacitive touch screen, 1280 × 800 pixels
Battery 3.7 V, 16000mAh lithium-ion battery
Charging Standard DC 12V adaptor, supports Type-C 5V charging
Multifunction meter accuracy 4⅚ digits
Dimensions 265 × 174 × 31 mm (width × height × thickness)
