Description

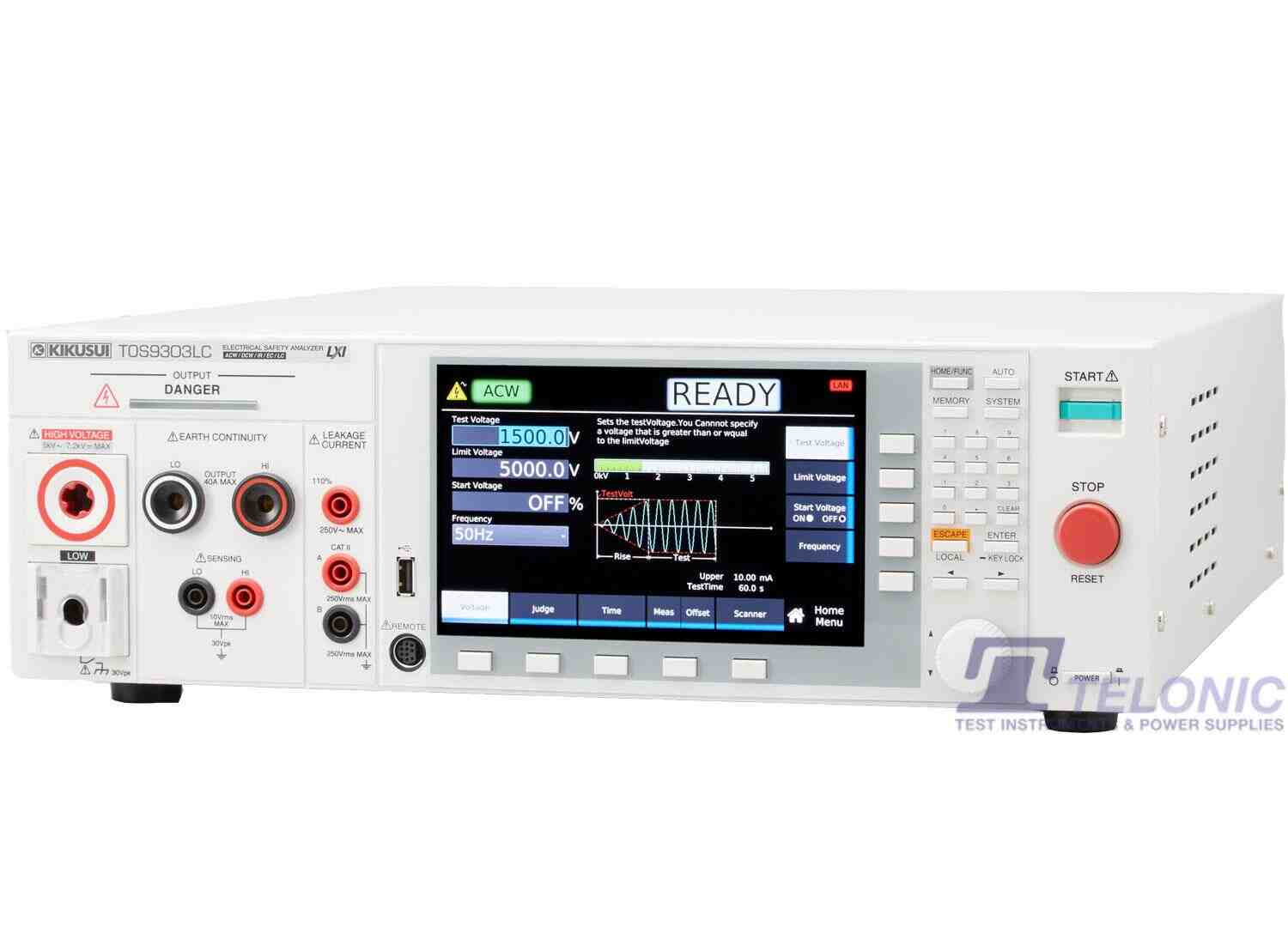

Kikusui TOS9303LC Safety Tester
The TOS9303LC is an AC/DC HiPot Tester (AC: 5kV / 100mA(500VA), DC: 5kV /20mA,7.2kV/13.9mA(100W)) with Insulation Resistance Testing (0.001M Ω to 100.0G Ω(DC-25V to -1000V / DC+50V to +7200V)), Ground Bond Testing (0.001 Ω to 0.600 Ω(3.0A to 42.0A)) and Leakage Current Testing (1μA to 100mA(rms)). The TOS9300 Series are high performance electrical safety analysers that comply to a wide range of universal standards. HiPot, Insulation Resistance, Ground Bond, Leakage Current (touch current and protective conductor current) and partial discharge can all be tested. A total of 6 models are available for standard compliance tests in a wide variety of applications including R&D, quality assurance manufacturing lines and laboratory tests. The TOS9300 Series is a high performance electrical safety analyser that complies to a wide range of universal standards. HiPot, Insulation Resistance, Ground Bond, Leakage Current (touch current and protective conductor current) and partial discharge can all be tested. A total of 6 models are available for standard compliance tests in a wide variety of applications including R&D, quality assurance manufacturing lines and laboratory tests.
Features:
- User-friendly 10Key configuration
- Easy firmware updates via USB
- LAN/USB/RS232C Standard Digital Interface
- I/V Monitor Terminal (Analogue Monitor)
- STATUS OUT Connector
- SIGNAL I/O Connector
- High Precision/High Resolution/High Speed
- Programmable detection response speed
- 7.2kV/100W DC HiPot Test
- Positive Electrode/Negative Electrode Insulation Resistance Testing
- Electric Discharge Function
- AC/DC Earth Continuity testing up to 40A
- EARTH FAULT Protection
- Offset Cancel
- Basic memory function
- Calibration deadline notification
- High-voltage scanner (option)
- Rental Unit is available by clicking HERE
Specification:
- Max output-voltage of AC HiPot testing: 5kV / 100mA(500VA)
- Max output-voltage of DC HiPot testing: 5kV / 20mA, 7.2kV.13.9mA(100W)
- Measurement range insulation resistance testing: 0.001MΩ to 100.0GΩ (DC -25V to -1000V / DC +50V to +7200V)
- Measurement range of ground boMend testing: 0.001Ω to 0.600Ω (3.0A to 42.0A)
- Measurement range of leakage current testing: 1μA to 100mA(rms)
- Rise-time control / fall-time control function provided
- Output voltage and panel settings are controlled through LAN/USB/RS232C
