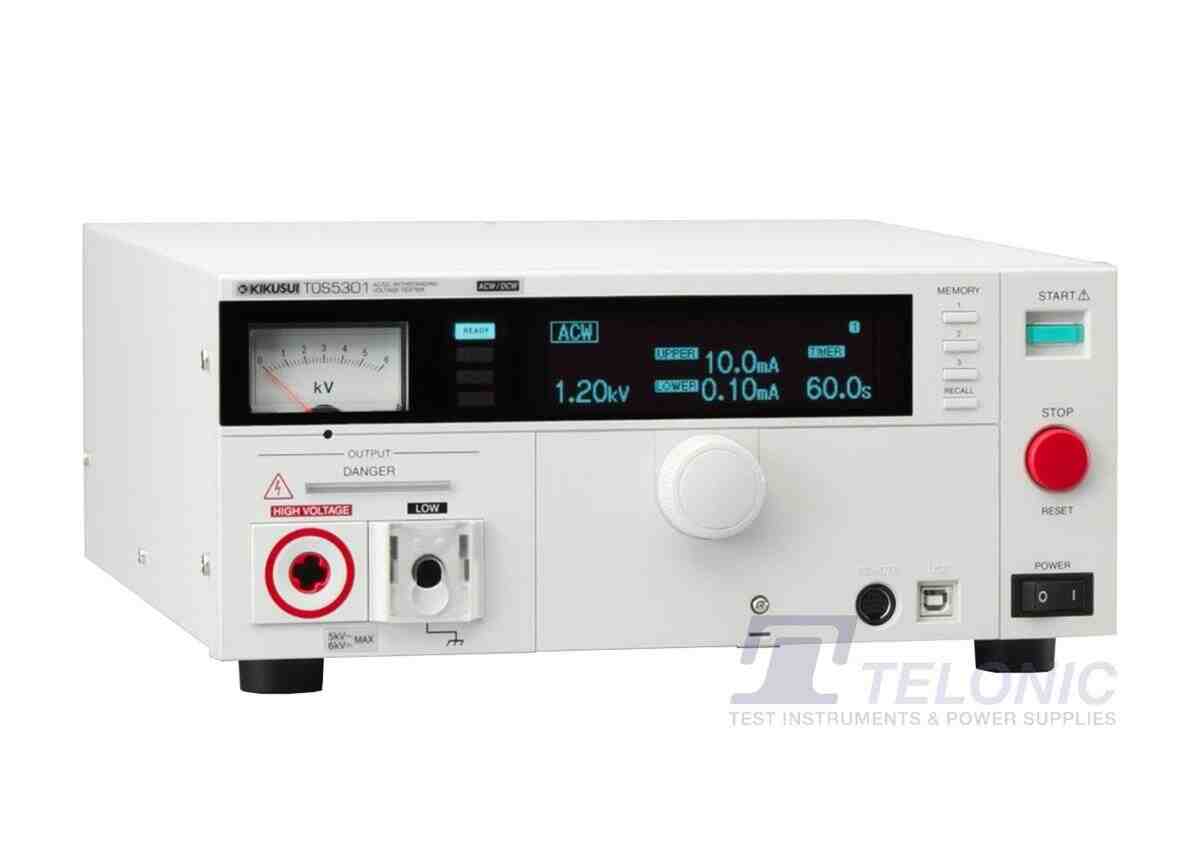

Image of Tos5301

Discontinued: Kikusui TOS5301 AC/DC Flash Tester / Hipot Tester 0-5kV(AC) 0-6kV(DC) AC 0-100mA (200mA S/C)/ DC 0-10mA

£2,099.00 (£2,518.80 inc. VAT)

Available on back-order

SKU: TOS5301 Category: Brand:

Compare with other AC/DC Flash Testers

SKUImageBrandProduct NameStockPrice
TOS5301Image of Tos5301kikusuiDiscontinued: Kikusui TOS5301 AC/DC Flash Tester / Hipot Tester 0-5kV(AC) 0-6kV(DC) AC 0-100mA (200mA S/C)/ DC 0-10mAOn Backorder£2,099.00
TOS5200Image of Kikusui tos5200 5kv ac hipot tester front1 pngkikusuiKikusui TOS5200 AC Flash Tester / HiPot Tester 0-5000V 0-100mA (200mA S/C)On Backorder£1,203.00
TOS5401Image of Kikusui tos5402 high quality photo telonicukkikusuiKikusui TOS5401 5kV AC / 6kV DC Hipot Withstanding Voltage TesterOn Backorder£2,625.00
TOS5402Image of Kikusui tos5402 high quality photo telonicukkikusuiKikusui TOS5402 5kV AC Hipot and 10GΩ Insulation Resistance TesterOn Backorder£2,625.00
TOS5403Image of Kikusui tos5402 high quality photo telonicukkikusuiKikusui TOS5403 6kV DC Hipot and 10GΩ Insulation Resistance TesterLow stock1£2,625.00
TOS9300Image of Telonic tos9300 frontkikusuiKikusui TOS9300 AC HiPot Tester with Insulation Resistance TestOn Backorder£3,492.00
TOS9301Image of Telonic tos9301 frontkikusuiKikusui TOS9301 AC/DC HiPot Tester with Insulation Resistance Test3£4,192.00
TOS9301PDImage of Telonic tos9301 frontkikusuiKikusui TOS9301PD AC/DC HiPot Tester with Insulation Resistance and Partial Discharge TestOn Backorder£8,645.00
TOS9302Image of Telonic tos9302 frontkikusuiKikusui TOS9302 AC HiPot Tester with Ground Bond TestOn Backorder£4,586.00
TOS9303Image of Telonic tos9303 frontkikusuiKikusui TOS9303 AC/DC HiPot Tester with Insulation Resistance and Ground Bond TestLow stock2£5,289.00
TOS9303LCImage of Telonic tos9303lc frontkikusuiKikusui TOS9303LC AC/DC Hipot Tester with Insulation Resistance, Ground Bond and Leakage Current TestOn Backorder£7,254.00
TOS9303LC-RentalImage of Telonic tos9303lc frontkikusuiKikusui TOS9303LC AC/DC Hipot Tester with Insulation Resistance, Ground Bond and Leakage Current Test RentalOn Backorder£348.00
TOS9311Image of Kikusui tos9311 telonic ukkikusuiKikusui TOS9311 10kV AC/DC HiPot Tester / Insulation Resistance TesterOn Backorder£7,092.00
MICROTEST-7640Image of Microtest 7640 final telonicukmicrotestMICROTEST 7640 1-Channel 5kV AC / 6kV DC / 100GΩ Hi-Pot TesterOn BackorderCall us
MICROTEST-7641Image of Microtest 7641 final telonicukmicrotestMICROTEST 7641 8-Channel 5kV AC / 6kV DC / 100GΩ Hi-Pot TesterOn BackorderCall us
TOS5301-RentalImage of Tos5301kikusuiRental Kikusui TOS5301 AC/DC Flash Tester / Hipot Tester 0-5kV(AC) 0-6kV(DC) AC 0-100mA (200mA S/C)/ DC 0-10mALow stock2£118.00
TOS5302-RentalImage of Tos5302 frontkikusuiRental Kikusui TOS5302 AC Flash Tester / HiPot plus Insulation Resistance Tester 0-5kV(AC) 25-1000V(IR) AC 0-100mA (200mA S/C)Low stock1£140.00
TOS9303-RentalImage of Telonic tos9303 frontkikusuiRental Kikusui TOS9303 AC/DC HiPot Tester with Insulation Resistance and Ground Bond TestOn Backorder£293.00
TOS9301PD- DemoImage of Telonic tos9301 frontkikusuiRental: Kikusui TOS9301PD AC/DC HiPot Tester with Insulation Resistance and Partial Discharge TestLow stock1£348.00
TOS9311 - DemoImage of Kikusui tos9311 telonic ukkikusuiRental: Kikusui TOS9311 10kV AC/DC HiPot Tester / Insulation Resistance TesterLow stock1£348.00

Description

THIS IS A DISCONTINUED ITEM. PLEASE SEE THE ALTERNATIVE MODEL HERE

Kikusui TOS5301 Safety Tester
The Kikusui TOS5301 is a AC/DC withstanding voltage tester. It has an AC output of 5 kV/100 mA (200mA S/C 500VA Capacity)and DC 6kV 0-10mA, the TOS5301 can be used in Hipot/withstanding voltage testing of electronic equipment and electronic parts, based on the requirements of IEC, EN, UL, VDE, JIS, and other international safety standards. Also, the test voltage stability is improved with the adoption of a newly developed switching amplifier. Since the output voltage can be kept constant even when the AC line voltage or frequency changes, consistent testing can be performed, even when the power supply environment is in an unstable region. The TOS5300 is also equipped with a number of features. Rise time/Fall time control, Key lock function and Protection cover for key operation, Equipped with USB interface.

Additional information

Documents

Kikusui TOS5300 Documentation
TOS5301/2 Specifications
Model TOS5301 TOS5302
AC Output Section
Output Range 0.05 kV to 5.00 kV 0.05 kV to 5.00 kV
Accuracy ±(2 % of set + 20 V) when no load is connected ±(2 % of set + 20 V) when no load is connected
Setting Range 0.00 kV to 5.50 kV 0.00 kV to 5.50 kV
Resolution 10 V steps 10 V steps
Max. rated output 500 VA (5 kV/100 mA) 500 VA (5 kV/100 mA)
Max. rated voltage 5 kV 5 kV
Max. rated current 100 mA (when the output voltage is 0.5 kV or greater) 100 mA (when the output voltage is 0.5 kV or greater)
Transformer rating 500 VA 500 VA
Output voltage waveform Sine Sine
Distortion If the output voltage is 0.5 kV or more: 3 % or less (when no load or a pure resistive load is connected). If the output voltage is 0.5 kV or more: 3 % or less (when no load or a pure resistive load is connected).
Frequency 50 Hz or 60 Hz 50 Hz or 60 Hz
Accuracy ±0.5 % (excluding during voltage rise time) ±0.5 % (excluding during voltage rise time)
Voltage regulation 10 % or less (when changing from maximum rated load to no load) 10 % or less (when changing from maximum rated load to no load)
Input voltage variation ±0.3 % (5 kV when no load is connected; power supply voltage: 90 V to 250 V) ±0.3 % (5 kV when no load is connected; power supply voltage: 90 V to 250 V)
Short-circuit current 200 mA or more (when the output voltage is 1.0 kV or greater) 200 mA or more (when the output voltage is 1.0 kV or greater)
Output method PWM switching PWM switching
DC Output Section
Output range 0.05 kV to 6.00 kV —–
Accuracy ±(2 % of set + 20 V) when no load is connected —–
Setting range 0.00 kV to 6.20 kV —–
Resolution 10 V steps —–
Max. rated output 50 W (5 kV/10 mA) —–
Max. rated voltage 6 kV —–
Max. rated current 10 mA —–
Ripple (TYP) 5 kV when no load is connected: 50 Vp-p
Max. Rated Load: 100 Vp-p		 —–
Voltage regulation 3 % or less (when changing from maximum
rated load to no load)		 —–
Short-circuit current (TYP) 40 mA (when generation 6 kV output) —–
Discharge feature Forced discharge after test completion
(discharge resistance: 125 kΩ)		 —–
Start Voltage The voltage at the start of withstanding voltage tests can be set to 50% of the test voltage The voltage at the start of withstanding voltage tests can be set to 50% of the test voltage
Limit Voltage The test voltage upper limit can be set . AC: 0.00 kV to 5.50 kV, DC: 0.00 kV to 6.20 kV The test voltage upper limit can be set . AC: 0.00 kV to 5.50 kV, DC: 0.00 kV to 6.20 kV
Output voltage monitor feature If output voltage exceeds the specified value + 350 V or is lower than the specified value – 350 V,
output is turned off, and protective features are activated.		 If output voltage exceeds the specified value + 350 V or is lower than the specified value – 350 V,
output is turned off, and protective features are activated.

Note* Specifications are liable to change. For the full list of Specifications, please see the products datasheet located under the ‘Documentation’ tab.
