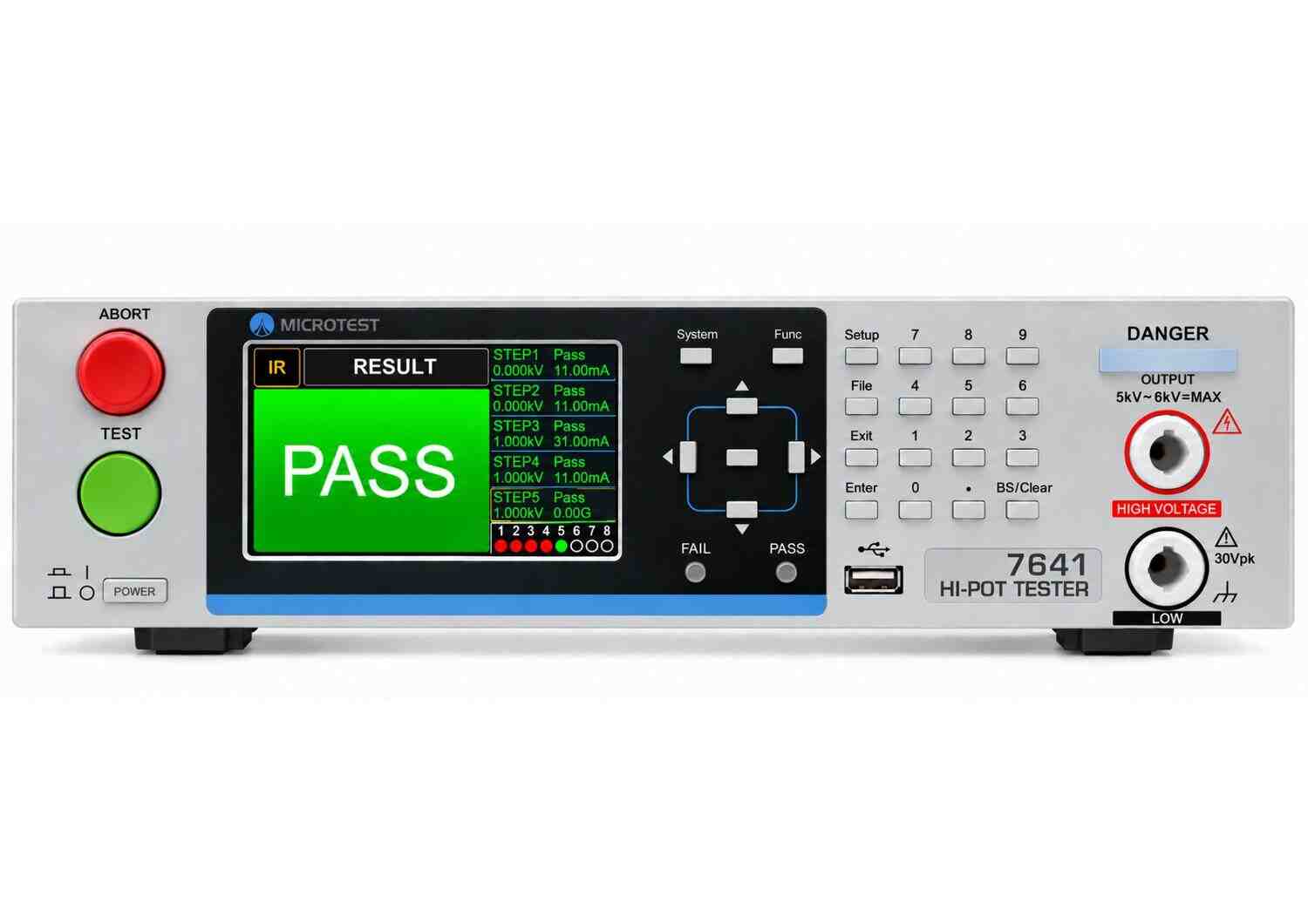

MICROTEST 7641 8-Channel 5kV AC / 6kV DC / 100GΩ Hi-Pot Tester

SKU: MICROTEST-7641 Category: Brand:

Description

MICROTEST 7641 8-Channel 5kV AC / 6kV DC / 100GΩ Hi-Pot Tester

The MICROTEST 7641 is an eight-channel, three-in-one electrical safety tester for high-throughput and multi-point testing. It integrates AC withstand voltage, DC withstand voltage and insulation resistance testing, delivering up to 5kV AC at 30mA, 6kV DC at 10mA, and insulation-resistance measurement from 200kΩ to 100GΩ.

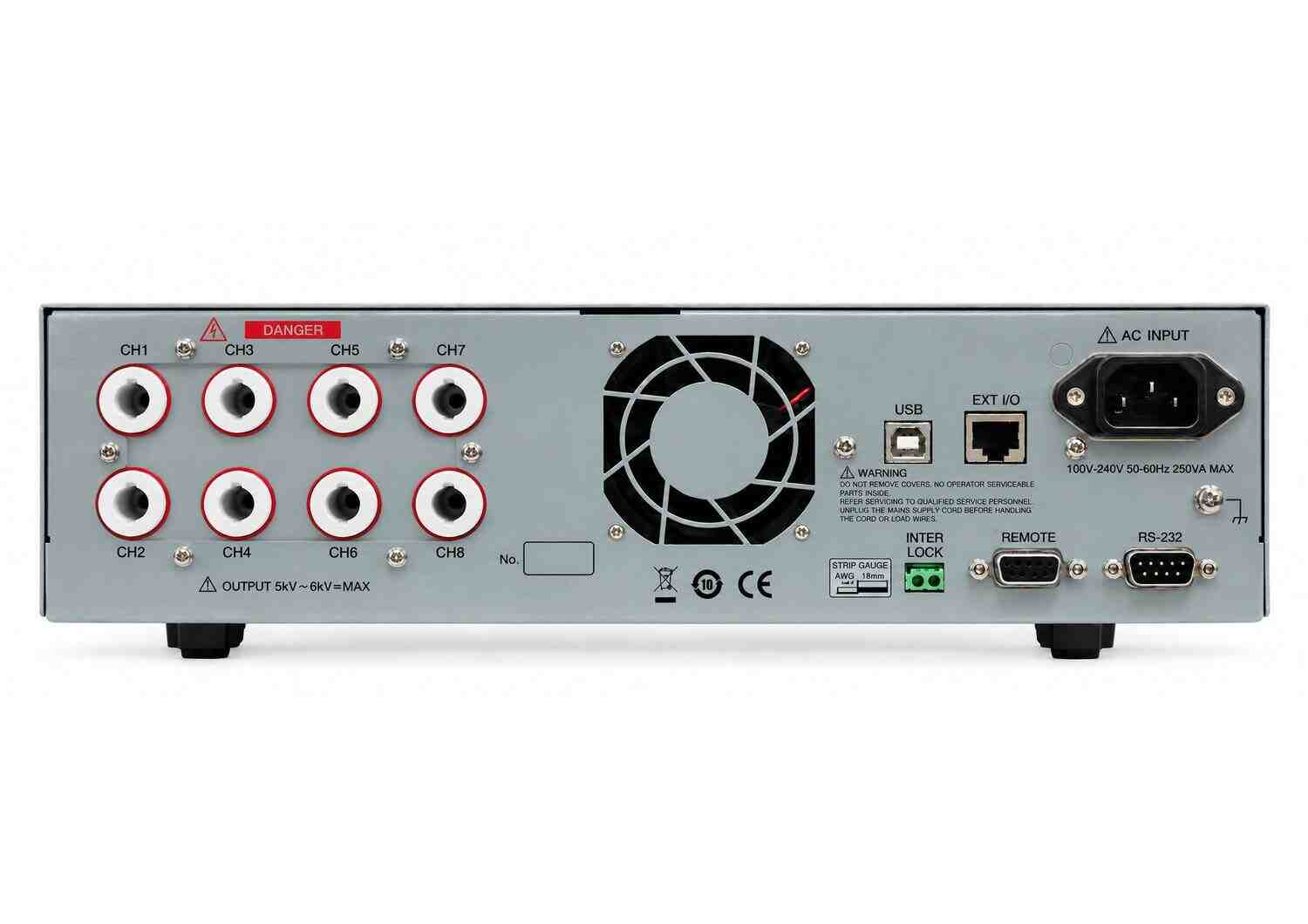

Eight configurable rear-panel channels allow multiple test points or devices to be managed from one instrument. With optional 7508A and 7516A scanner expansion boxes, the system can scale to 72 test channels. Multi-step programs, contact checking, parallel test modes, adjustable arc detection, barcode-assisted traceability, remote programming and test-data logging make the 7641 particularly well suited to automated production and complex assemblies.

Additional information

Documents

7640-7641-microtest
Specification MICROTEST 7640 MICROTEST 7641
Model configuration
Built-in channels 1 8
Maximum channels with expansion Single-channel base instrument Up to 72 with compatible 7508A / 7516A scanner boxes
Test-sequence capacity Up to 8 steps per group Up to 16 steps per group
Built-in storage 64 sets 32 sets
AC hi-pot
Output voltage 10V to 5000V 10V to 5000V
Voltage resolution 1V 1V
Voltage accuracy ±(2% of setting + 5V), no load ±(2% of setting + 5V), no load
Output frequency 50 / 60Hz 50 / 60Hz
Rated current, maximum 30mA 30mA
Leakage-current range 0 to 31mA 0 to 31mA
Lower leakage-current resolution 0.001mA 0.001mA
Lower leakage-current accuracy ±(1% of reading + 5µA) ±(1% of reading + 5µA)
DC hi-pot
Output voltage 10V to 6000V 10V to 6000V
Voltage resolution 1V 1V
Voltage accuracy ±(2% of setting + 5V) ±(2% of setting + 5V)
Rated current, maximum 10mA 10mA
Leakage-current range 0 to 11mA 0 to 11mA
Lower leakage-current resolution 0.001mA 0.001mA
Lower leakage-current accuracy ±(1% of reading + 5µA) ±(1% of reading + 5µA)
Insulation resistance
Output voltage 10V to 6000V 10V to 6000V
Voltage resolution 1V 1V
Voltage accuracy ±(2% of setting + 5V) ±(2% of setting + 5V)
Rated current, maximum 1mA 1mA
IR range / upper threshold 200kΩ to 100GΩ 200kΩ to 100GΩ
IR resolution 0.001MΩ 0.001MΩ
Timing and detection
Measuring time 0.1 to 999s; 0 for continuous 0.1 to 999s; 0 for continuous
Measuring-time resolution 0.1s 0.1s
Ramp / dwell / fall time 0.1 to 99.9s 0.1 to 99.9s
Arc detection OFF or levels 1 to 9; level 1 is most sensitive OFF or levels 1 to 9; level 1 is most sensitive
General
Remote control Test and Abort Test and Abort
Remote output signals Pass, Fail, HV Output and Testing Pass, Fail, HV Output and Testing
Safety switch Rear INTER LOCK must be closed to enable high-voltage output Rear INTER LOCK must be closed to enable high-voltage output
Interfaces RS-232, Remote, USB Host, USB Device and EXT I/O RS-232, Remote, USB Host, USB Device and EXT I/O
Display 4.3-inch TFT LCD, 480 × 272 4.3-inch TFT LCD, 480 × 272
Power supply 100Vac to 240Vac, 50 / 60Hz ±5% 100Vac to 240Vac, 50 / 60Hz ±5%
Power consumption 350VA 350VA
Operating environment 5°C to 40°C; 20% to 80% RH 5°C to 40°C; 20% to 80% RH
Dimensions (W × H × D) 340 × 88 × 369.6mm 340 × 88 × 429.6mm
Weight 12kg 14kg
