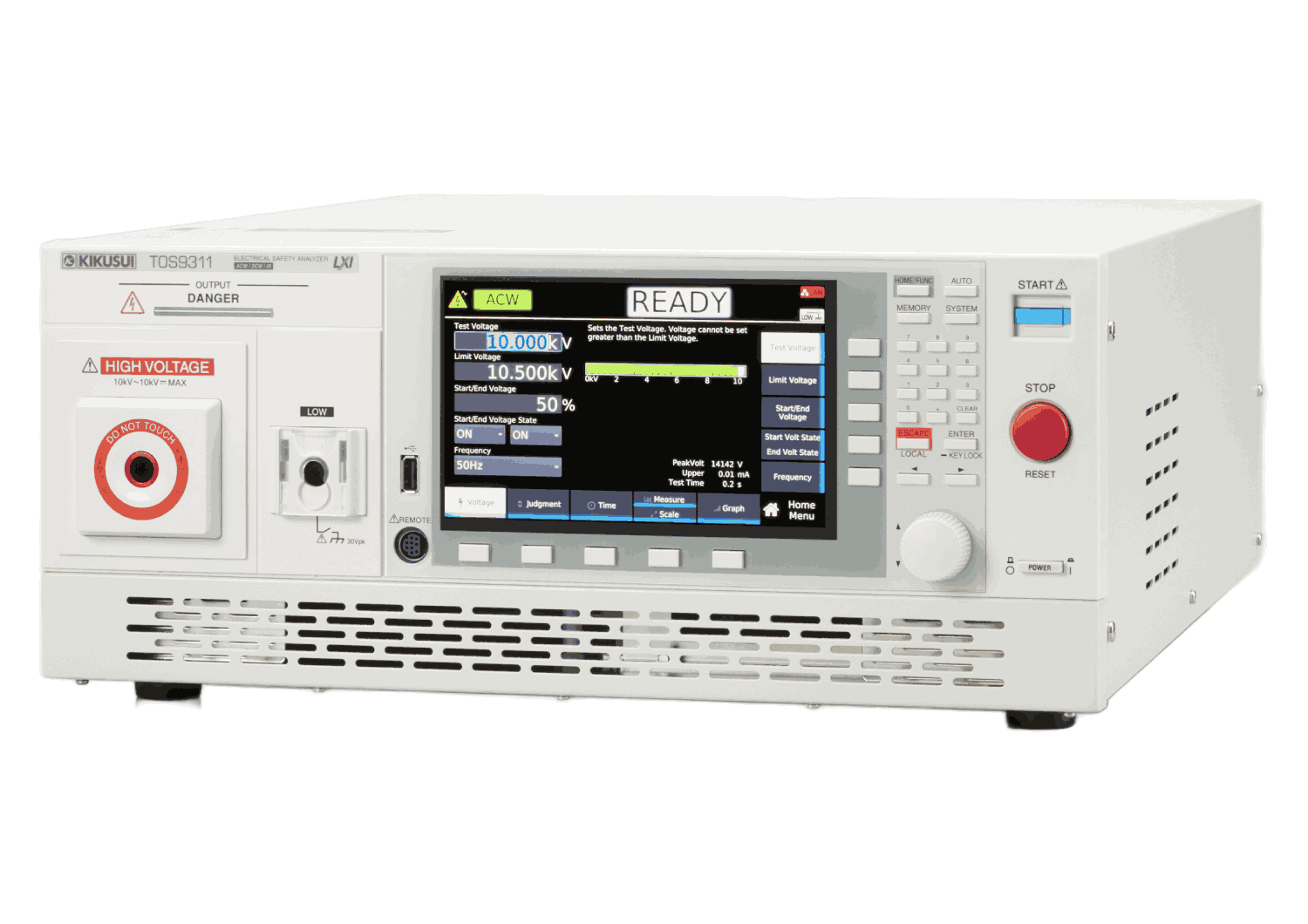

Image of Kikusui tos9311 telonic uk

Rental: Kikusui TOS9311 10kV AC/DC HiPot Tester / Insulation Resistance Tester

£348.00 (£417.60 inc. VAT)

Prices shown are weekly rental rates.

You will be charged weekly until the items are returned

Prices shown are weekly rental rates.

You will be charged weekly until the items are returned

1 in stock

SKU: TOS9311 - Demo Categories: , , Brand:

Description

Kikusui TOS9311 Multifunctional Safety Analyser – The Ultimate Solution for High-Voltage Electrical Safety Testing

The Kikusui TOS9311 is a cutting-edge high-voltage safety analyser, engineered to deliver exceptional performance in electrical safety testing for high-voltage equipment and components. Designed to handle up to 10 kV AC/DC, this state-of-the-art analyser ensures reliable and accurate withstand voltage tests and insulation resistance tests for even the most demanding applications.

This versatile multi-analyser streamlines testing processes with features such as AC withstand voltage tests, DC withstand voltage tests, and comprehensive insulation resistance testing, all within a single, user-friendly unit.

Whether you’re working with SiC power devices that require up to 6.5 kV withstand voltage, high-voltage inverters, advanced PV panels rated up to 1,500 V, or other critical components, the TOS9311 ensures your equipment meets the strictest safety compliance standards.Enhance your electrical safety testing capabilities with the Kikusui TOS9311, ensuring the safety, reliability, and compliance of your high-voltage equipment.

Upgrade your testing equipment today with the TOS9311—where innovation meets precision and reliability.



Additional information

Documents

Kikusui TOS9300
AC Output range 0.050 kV to 10.000 kV
Resolution 1 V
Accuracy of setting ±(1.2% of setting + 0.02kV) (at no load)
Max. rated load *1 500 VA（10 kV / 50 mA）
Max. rated current 50 mA (When the output voltage is 0.5 kV or higher)
Transformer rating 500 VA
Output voltage waveform *2 Sine
Distortion Rate 2 % or less (When the output voltage is 1.0 kV or more and the pure resistive load is 200 kΩ)
Crest factor √2 ± 3 %(1500 V or more)
Frequency 50 Hz/60 Hz
Accuracy ±0.1 %
Voltage regulation ±3 % or less (when changing from maximum rated load to no load)
Short-circuit current 100 mA or more (Output voltage 1.0 kV or higher)
Output method PWM switching
Output range 0.100 kV to 10.000 kV
Resolution 1 V
Setting accuracy ±(1.2 % of setting + 0.02 kV)
Max. rated load *1 100 W (5 kV/20 mA, 10 kV/10 mA)
Max. rated current 20 mA
Ripple 10 kV no load 30 Vp-p Typ．
Max. rated load 100 Vp-p Typ．
Voltage regulation 1 % or less (When changing from maximum rated load to no load.)
Short-circuit current 50 mA（100 mA peak）
Discharge feature Forced discharge after test completion (Discharge resistance: 125 kΩ)
Start voltage The voltage at the start of the test can be set.
Setting range 1 % to 99 % of the test voltage (1% resolution)
Output voltage monitor feature If the output voltage exceeds ±(10 % of setting + 0.05 kV), the output is turned off, and the protection function is activated.

DC

DC Output range 0.100 kV to 10.000 kV
Resolution 1 V
Accuracy of setting ±(1.2 % of setting + 0.02 kV)
Max. rated load *1 100 W (5 kV/20 mA, 10 kV/10 mA)
Max. rated current 20 mA
Ripple 10 kV no load 30 Vp-p Typ．
Max. rated load 100 Vp-p Typ．
Voltage regulation 1 % or less (When changing from maximum rated load to no load.)
Short-circuit current 50 mA（100 mA peak）
Discharge feature Forced discharge after test completion (Discharge resistance: 125 kΩ)
Start voltage The voltage at the start of the test can be set.
Setting range 1 % to 99 % of the test voltage (1% resolution)
Output voltage monitor feature If the output voltage exceeds ±(10 % of setting + 0.05 kV), the output is
turned off, and the protection function is activated.
