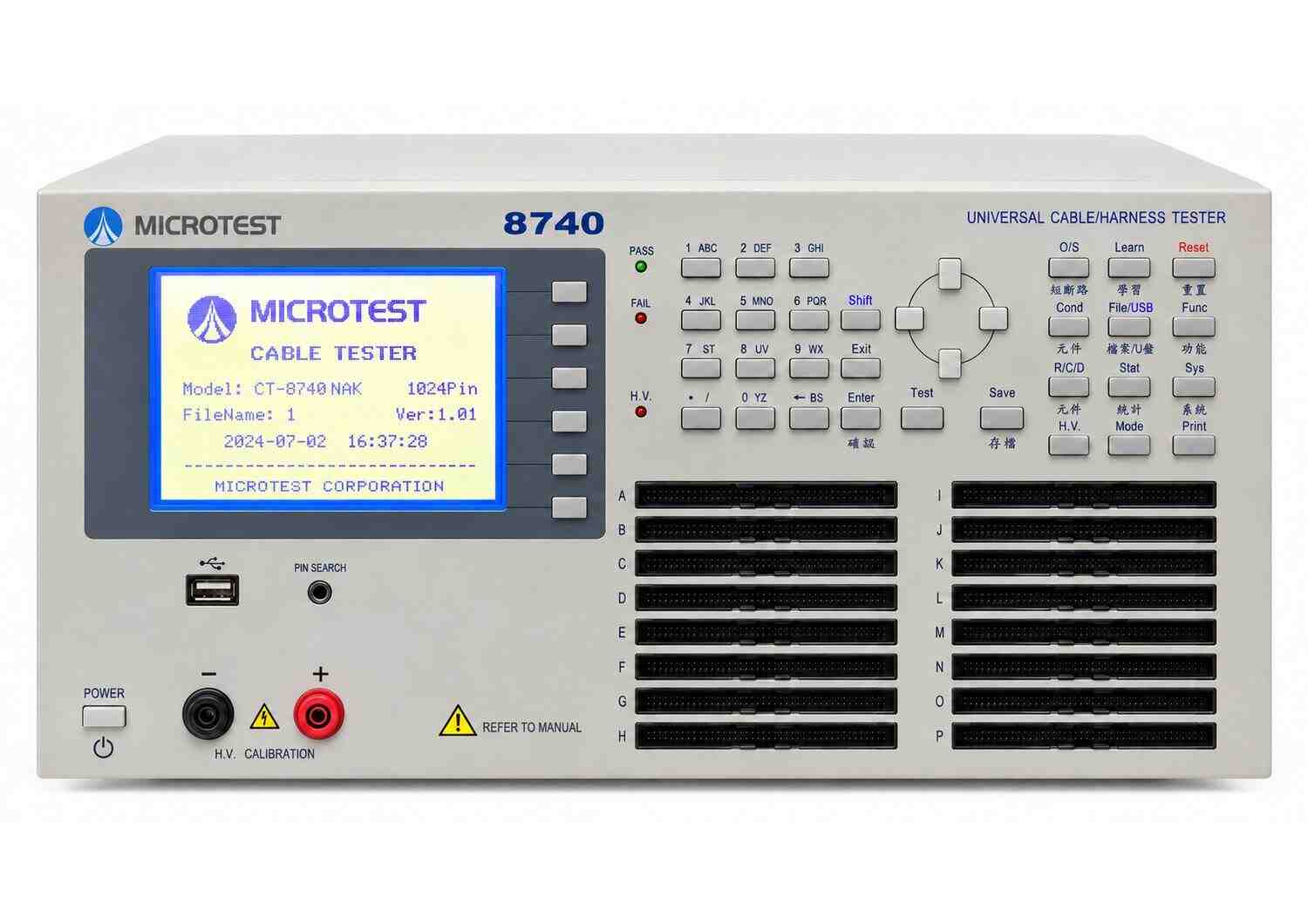

Image of Microtest 8740k 1024p front telonicuk
Image of Microtest k chassis rear telonicuk

MICROTEST 8740NAK-1024P 1,024-Pin 2-Wire Cable & Harness Tester, 700 V AC / 1 kV DC

£5,515.00 (£6,618.00 inc. VAT)

Out of stock

SKU: 8740NAK-1024P Category: Brand:

Description

MICROTEST 8740NAK-1024P 1,024-Pin 2-Wire Cable & Harness Tester, 700 V AC / 1 kV DC

The MICROTEST 8740NAK-1024P is a 1,024-pin 2-wire cable and wire harness tester with continuity measurement from 100 mΩ to 52 Ω. Its two-wire measurement method supports general wiring and connection checks on production cable assemblies. It combines AC Hipot testing up to 700 V with DC Hipot testing up to 1 kV, insulation resistance covering 0.1 MΩ–1.2 GΩ, open/short testing, intermittent-fault detection and resistor, capacitor and diode checks. The 1,024-point K configuration provides additional connection capacity in a 435 × 270 × 360 mm enclosure. Storage for up to 500 test files and RS-232, USB Host, printer and remote interfaces support repeat production work.

Additional information

Documents

Microtest-8740
Specification 8740NK 8740NAK
Measurement method 2-wire 2-wire
Available test points 1024 1024
AC Hipot voltage Not available 100–700 V
DC Hipot voltage 50–1,000 V 50–1,000 V
AC Hipot leakage current Not available 0.01–5 mA
AC arc detection settings Not available 1–8
DC Hipot leakage current 0.1–1,000 µA 0.1–1,000 µA
DC arc detection settings 1–8 1–8
Insulation resistance 0.1 MΩ–1.2 GΩ 0.1 MΩ–1.2 GΩ
Hipot output accuracy ±5% ±5%
Hipot measurement basic accuracy ±5% ±5%
Rated output (manufacturer description) 5 V DC 5 V DC
Hipot measurement time 0.01–60 s 0.01–60 s
Maximum allowable DUT capacitance 5 µF 5 µF
Continuity resistance 100 mΩ–52 Ω 100 mΩ–52 Ω
Continuity test current 35 mA 35 mA
Intermittent continuity 20 Ω–2 kΩ 20 Ω–2 kΩ
O/S, intermittent O/S and quick intermittent open circuit 1–100 kΩ 1–100 kΩ
Single-side testing and O/S terminal judgement Supported Supported
Component resistance 100 mΩ–2 MΩ 100 mΩ–2 MΩ
Resistance signal 2.4 V fixed 2.4 V fixed
Component capacitance 10 pF–3 µF 10 pF–3 µF
Capacitance signal 1.2 V fixed 1.2 V fixed
Capacitance frequency AUTO AUTO
Diode voltage 0.1–6.8 V 0.1–6.8 V
Test files Up to 500 Up to 500
Display 320 × 240 dot-matrix 320 × 240 dot-matrix
Advanced functions Programmable continuous testing / pin search / self-diagnosis Programmable continuous testing / pin search / self-diagnosis
Scan modes Automatic / manual / external trigger Automatic / manual / external trigger
Controls System / Rapid / Edit / Function System / Rapid / Edit / Function
Indication Pass/Fail and HV indicators / screen / sound Pass/Fail and HV indicators / screen / sound
Operation Manual / automatic / remote Manual / automatic / remote
Interfaces RS-232 / USB Host / Print / Remote RS-232 / USB Host / Print / Remote
PC Link Supported; software is an optional ordering item Supported; software is an optional ordering item
Supply 115 / 230 V AC ±10%, 50 / 60 Hz 115 / 230 V AC ±10%, 50 / 60 Hz
Operating environment 15–35°C; ≤70% RH 15–35°C; ≤70% RH
Power consumption 250 VA 250 VA
Dimensions W × H × D 435 × 270 × 360 mm 435 × 270 × 360 mm
Weight 18 kg 18 kg
Voltage qualification Manufacturer note: at a 5 MΩ setting or below 5 µA, maximum test voltage is 650 V; AC tolerance setting range 0.01–5 mA. Consult the manual for the test conditions. Manufacturer note: at a 5 MΩ setting or below 5 µA, maximum test voltage is 650 V; AC tolerance setting range 0.01–5 mA. Consult the manual for the test conditions.
Additional test qualifications Correct/zero before AC Hipot measurements below 0.1 mA; follow the manual for insulation measurements. Correct/zero before AC Hipot measurements below 0.1 mA; follow the manual for insulation measurements.
