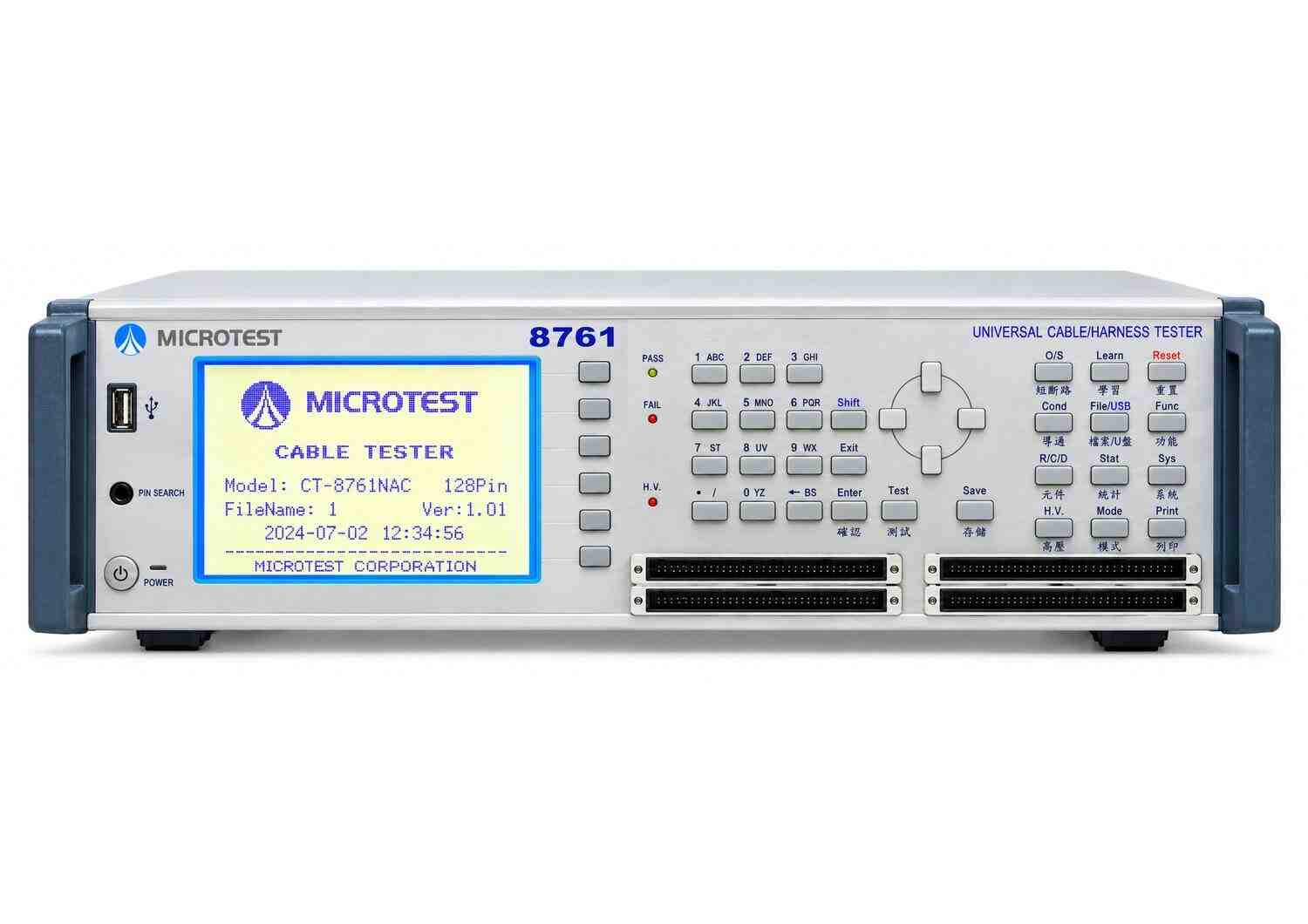

Image of Microtest 8761nac 128p front telonicuk
Image of Microtest k chassis rear telonicuk

MICROTEST 8761NAC-128P 128-Pin 4-Wire USB-C Cable Tester, 700 V AC / 1 kV DC

£2,574.00 (£3,088.80 inc. VAT)

Out of stock

SKU: 8761NAC-128P Category: Brand:

Description

MICROTEST 8761NAC-128P 128-Pin 4-Wire USB-C Cable Tester, 700 V AC / 1 kV DC

The MICROTEST 8761NAC-128P is a 128-pin 4-wire USB Type-C cable and connector tester with continuity measurement from 1 mΩ to 52 Ω. Separate current and voltage-sense connections reduce the effect of fixture lead resistance when checking low-resistance conductors and contacts. It combines AC Hipot testing up to 700 V with DC Hipot testing up to 1 kV, insulation resistance covering 0.1 MΩ–1.2 GΩ, open/short testing, intermittent-fault detection and resistor, capacitor and diode checks. USB-C functions include automatic connector-orientation detection and checks on Ra resistors, filter capacitors and isolation diodes. An optional FX-000C28 or FX-000C28C expansion box is required for 5 A voltage-drop testing and E-marker VDO reading. The 128-pin configuration provides additional test points for the chosen USB-C fixture arrangement. Storage for up to 500 test files and RS-232, USB Host, printer and remote interfaces support repeat production work.

Additional information

Documents

Microtest-8761
Specification 8761NAC
Measurement method 4-wire
Available test points 64 / 128
AC Hipot voltage 100–700 V
DC Hipot voltage 50–1,000 V
AC Hipot leakage current 0.01–5 mA
AC arc detection settings 1–48
DC Hipot leakage current 0.1–1,200 µA
DC arc detection settings 1–48
Insulation resistance 0.1 MΩ–1.2 GΩ
Hipot output accuracy ±5%
Hipot measurement basic accuracy ±5%
Rated output (manufacturer description) 5 V DC
Hipot measurement time 0.01–60 s
Maximum allowable DUT capacitance 5 µF
Continuity resistance 1 mΩ–52 Ω
Continuity test current 10 mA
Intermittent continuity 100 mΩ–52 Ω
O/S, intermittent O/S and quick intermittent open circuit 1–100 kΩ
Single-side testing and O/S terminal judgement Supported
Component resistance 50 mΩ–20 MΩ
Resistance signal 0.1–3 V
Component capacitance 10 pF–12 µF
Capacitance signal 0.1–1.2 V
Capacitance frequency AUTO
Diode voltage 0.1–6.8 V
Test files Up to 500
Display 320 × 240 dot-matrix
Advanced functions Programmable continuous testing / pin search / self-diagnosis
Scan modes Automatic / manual / external trigger
Controls System / Rapid / Edit / Function
Indication Pass/Fail and HV indicators / screen / sound
Operation Manual / automatic / remote
Interfaces RS-232 / USB Host / Print / Remote
PC Link Supported; software is an optional ordering item
Supply 115 / 230 V AC ±10%, 50 / 60 Hz
Operating environment 15–35°C; ≤70% RH
USB-C orientation Automatic normal/reversed connector detection
Netlist learning Four groups
O/S signal Adjustable 0.1–4 V
O/S netlist test mode Pattern / point-by-point scanning
5 A voltage drop / E-marker VDO reading Optional FX-000C28 or FX-000C28C required
Dimensions W × H × D 64P: 435 × 145 × 406 mm; 128P: 435 × 145 × 406 mm
Weight 64P: 8.44 kg; 128P: 9.3 kg
Power consumption 64P / 128P: 70 VA
Voltage qualification Manufacturer note: at a 5 MΩ setting or below 5 µA, maximum test voltage is 650 V; AC tolerance setting range 0.01–5 mA. Consult the manual for the test conditions.
